* I began by considering the range of tractor-to-trailer angles and front-wheel steering angles under common conditions.
* Fig. 1 shows the angles during constant left turn. The outer circle is the path taken by the tractor’s front mid-axle, the slightly smaller circle is the path taken by the tractor’s rear mid-axle, the inner circle is the path taken by the trailer’s rear mid-axle after it moves elliptically to its steady-state position. In this illustration, the trailer’s axle-axle length (2 to 3) is thrice the tractor’s axle-axle length (1 to 2). Once a steady state is established, a modest front-wheel pitch (1 in 3) will result in a substantial tractor-to-trailer pitch (~ 4 in 3).

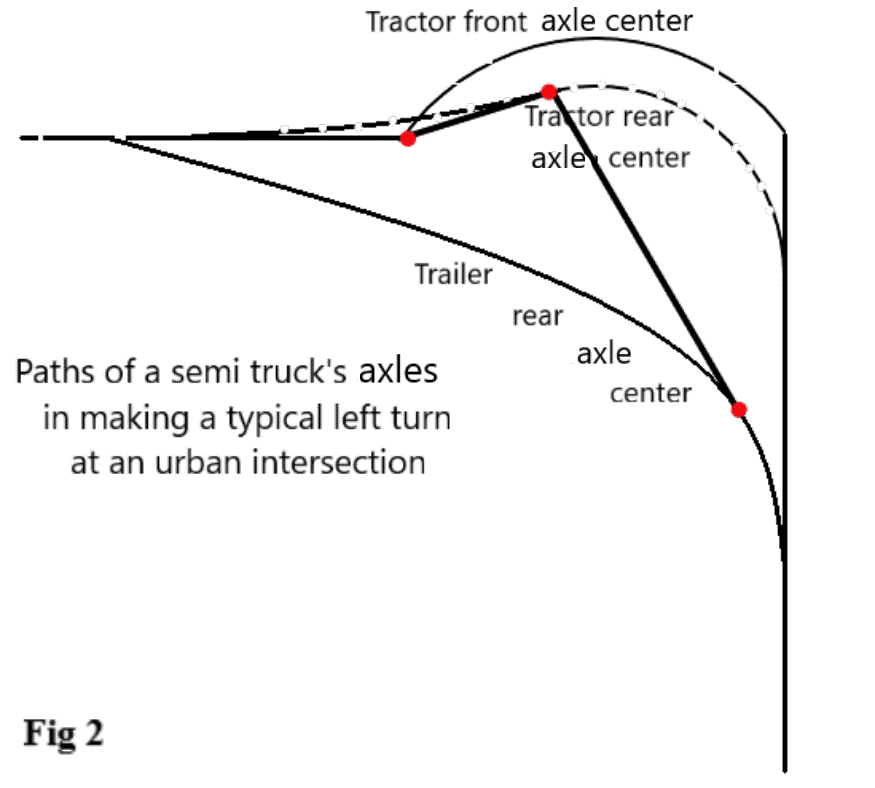

* Here the driver takes the tractor on a wide sweep. Approaching the side street, he/she will swing as far rightward as permitted, so the trailer’s rear wheels can best avoid a car in the left street’s oncoming lane. For the same reason, he/she will pull as far beyond the intersection as permitted. Early in the turn and until the tractor is in the side street, the tractor-to-trailer angel may be 90deg or slightly sharper. Once the tractor's front wheels are in the eventual path, they will be steered rightward until the tractor's rear wheels are tracking in line.
* Thus the relation between tractor front-wheel steering angle and tractor-to-trailer angle varies greatly during normal operation. An algorithm and mechanism to prevent jack-knifing must freely allow those angles but quickly stop an increase of a tractor-to-trailer angle contrary to steering direction and/or it must rapidly halt and diminish a tractor-to-trailer jack-knifing angle. A leftward jack-knife would be recognized as leftward tractor-to-trailer angle associated either with rightward drift of the tractor's rear wheels and/or with righward steering of the front wheels while skidding. These conditions could be recognized by an optical device (analogous to an optical computer mouse) interacting with the road below the tractor's rear axle, perhaps aided by an accelerometer at this location.
* Figs 3 - 5 show a mechanisms to bring about the tractor-to-trailer angle responses.
* In Figs 3 & 4, the mechanism consists of a servo-motor-driven spool (red) attached to the tractor's frame behind or below the cab, this connected by a cable or chain (green) to a large grooved hoop (red) attached to the trailer's frame concentric with the hitch.
* In Fig 3 the cable or chain crosses between the spool and grooved hoop. The cable or chain wraps several times around the spool and is attached at its mid point.
* In Fig 5, a servo-driven cog-wheel engages a larger ring attached reversibly to the trailer.
With sufficient strength of the elements, such a device should be able to halt and diminish a dangerous tractor-to-trailer angle move the angle toward optimal.
